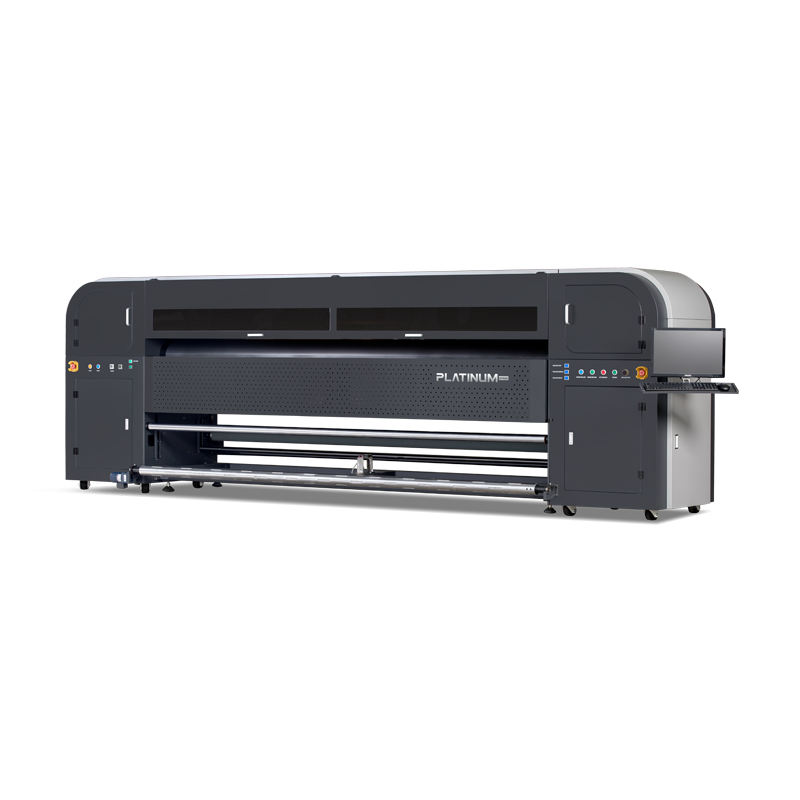

The PCT 3.2 metre roll to roll printer is fast becoming a popular addition to any print room with its reliability for long production runs and low running costs.
The PCT comes in two head choices including the Ricoh Gen6, famed for impressive speed, quality and reliability along with low ink use. For those that wish to have a Konica Minolta configuration, that’s available too. The PCT comes with Liquid cooled UV lamp units to ensure against media overheating while on a long run. An expanding anti wrinkle roller on the back ensures media is flat before entering the machine to help eliminate head crashes – but just in case this happens, the PCT also has a quick stop crash system too.
The standard PCT comes with a 4 colour configuration which is easily expanded when needed. All the PCT range comes fully configured with wiring and tubing so it can be upgraded at anytime just by adding heads without the fuss or cost.
The Platinum range also boasts of being Eco friendly – as evidenced by its Greenguard certificate. It has one of the lowest power consumption ratings available, and the Greenest ink.
Available with White, Varnish and light colours.
Movement system : Delta drive belt and pulley system
Print carriage : large print carriage for future head upgrades
Security system : Safety curtain
Print heads : Ricoh Gen6 or Konica Minolta
Quantity of print heads : 8 Ricoh gen 6 or 14 Konica Minolta
Drop volume : 5-15 Pl Ricoh Gen 6 / 15Pl on Konica Minolta
Ink configuration : CMYK – Lc – Lm – W – V
Type of ink : UV Led
Drying system : UV Led polymerization
Print size : Virtually any size up to 3.2 meters wide
Print resolution : 2400 DPI
Print speed max : 120 m² / hr
RIP software : Photo Print / Caldera (Opt.) / Onyx (Opt.)
Machine dimensions : 1150 mm x 5400 mm x 1650 mm
